Solid Union

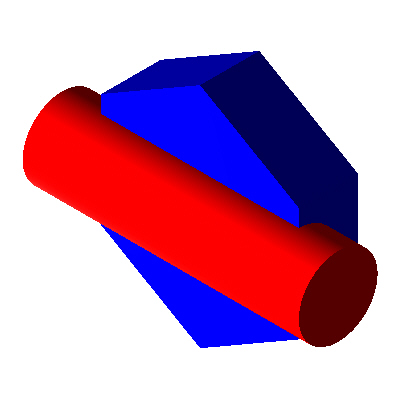

The Solid Union command joins two solids to yield a single solid.  Below a cylinder and a prism are unioned to produce a solid.  The upper-left image shows the original solids.  The other images show the result of the union operation.






union1a   union1b




union1c
