Intersection

Previous topic Next topic JavaScript is required for the print function

SilverScreenEllipse



S intersect D intersect C



The Solid Intersect command produces a solid corresponding to the volume that is common to two solids.  The images below show the results of two solid intersection commands.



The first image shows the solid that results from the intersection of the solid S and the solid D.  The second image shows the intersection of this resulting solid and the solid C.






isect1a

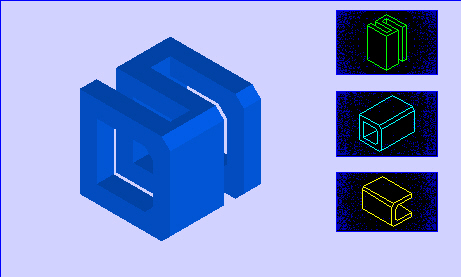

The Intersection of the S and the D





isect1b

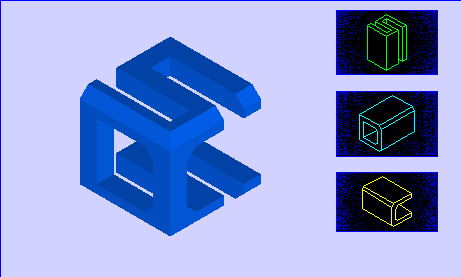

The Intersection of S+D and the C
