Solid Trim



The Solid Trim command trims one solid from another.  Three plates and four posts are shown in the images below.  The trim operation is used to trim the posts against the plates.

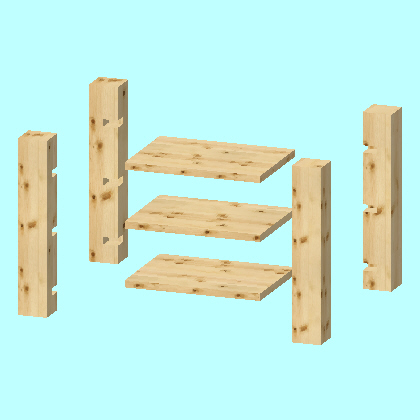

The first image shows the seven original solids; the second shows the result of the trim operation; the third shows an expanded view of the result.








trim1a trim1b








trim1c
