SilverScreenAPI



void relative_entry( int entry_mode );



int entry_mode;   // An integer value









Synopsis

#include "silver.h"



The relative_entry function sets the default 3D coordinate entry mode when keying in a 3D point.





Parameters

entry_mode is an integer whose meaning is as follows:



Value

Meaning

0

Coordinate entry mode is absolute

1

Coordinate entry mode is relative





Return Value

none





Remarks

When entry_mode is 0, here is the effect on the 3D point entry dialog:



relative_e0

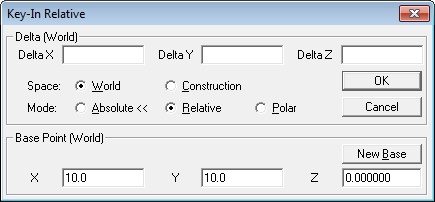

When entry_mode is 1, here is the effect on the 3D point entry dialog:



relative_e1





See Also

prompt_point





Example

The following code demonstrates the effect of relative_entry on the 3D point prompting:



C / C++ Code



#include "silver.h"



void main(void)

  {

  SS_XYZ world_xyz;



  // Prompt for a point, defaulting the coordinate entry mode to absolute



  relative_entry(0);



  if ( ! prompt_point("Press = to see the effect of 0") )

     exit(-1);



  get_world_xyz(&world_xyz);

  ss_command("at %z", &world_xyz);



  // Prompt for a point, defaulting the coordinate entry mode to relative



  relative_entry(1);

  prompt_point("Press x to see the effect of 1");

  }
