Fonts



SilverScreen supports both vector fonts and TrueType fonts.  When inserted into a drawing, both font types are fully three-dimensional.  That is, they can be displayed in parallel or perspective from any angle.



The first two images show vector fonts.  The next two images show TrueType fonts.

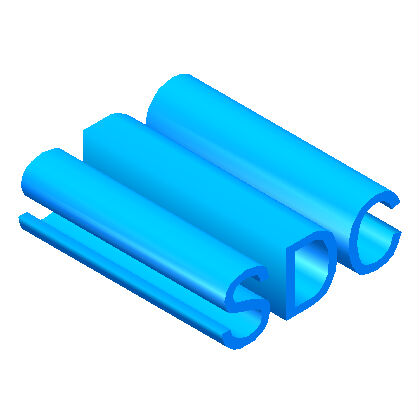

The last three screens show Arial text that is converted to polygons, and then swept to form three objects.









font1


font2

Three Vector Fonts




Isometric Front View



font3


font4

Three TrueType Fonts




Isometric Rear View





font5


font6

Arial TrueType




Converted and Swept



font7
