Three-View Annotation

SilverScreen organizes detailing into annotation blocks.  These blocks may have any orientation in 3D space.   Detailing is relative to the orientation of the annotation block.

In this set of images, we illustrate the traditional front-right-top annotation.  We begin by detailing the front view, then the right view, and finally the top view.  The red grid shows the orientation of the three annotation blocks.

This illustrates how detailed 2D drawings can be produced from a detailed 3D model.

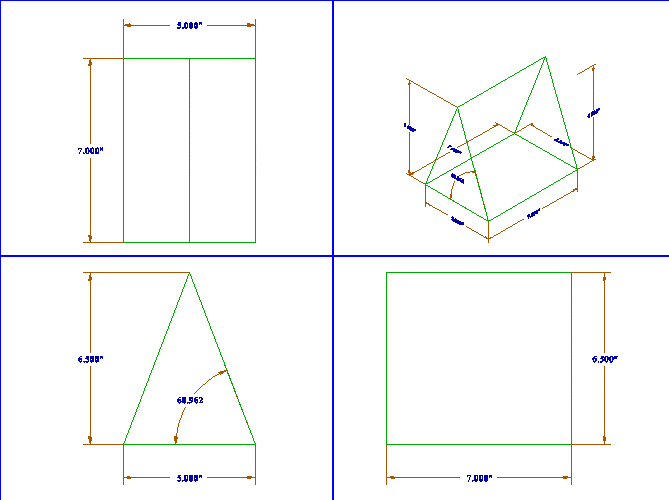

                                                                           Single Screen with Four Windows
